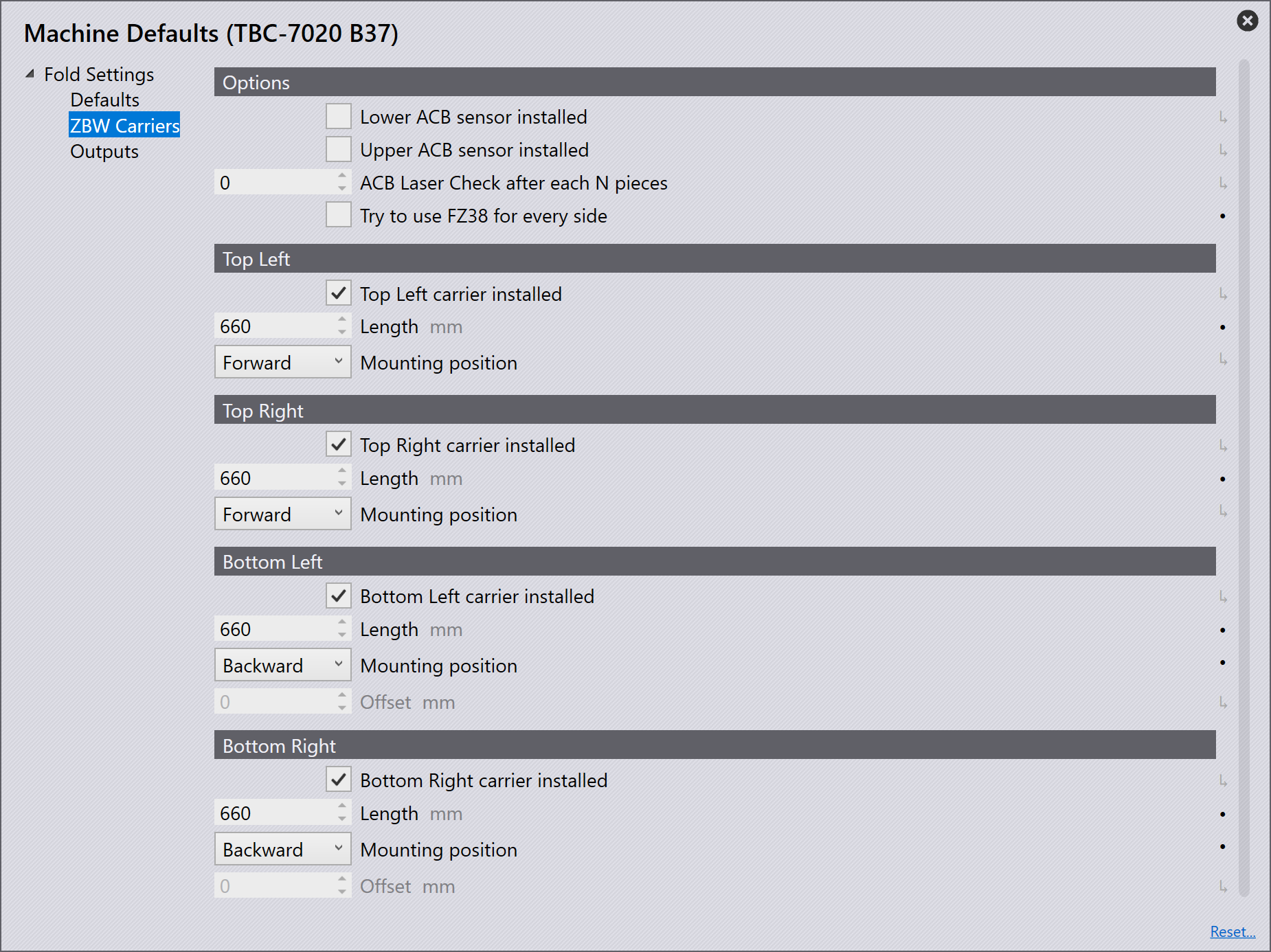

ZBW carriers
Options
Lower ACB sensor installed - Enable this if the machine has a lower ACB sensor.
Upper ACB sensor installed - Enable this if the machine has an upper ACB sensor.
ACB Laser Check after each N pieces - Enable this option to perform an ACB laser check after processing every N parts.
Try to use FZ38 for every side - The gauges are used for every side if a valid gauging position can be computed.
Top left/right & bottom left/right
-
Top Left carrier installed - Enable this if a Top Left carrier is installed.
-
Top Right carrier installed - Enable this if a Top Right carrier is installed.
-
Bottom Left carrier installed - Enable this if a Bottom Left carrier is installed.
-
Bottom Right carrier installed - Enable this if a Bottom Right carrier is installed.
Length - Use this to enter the length of the carrier.
Mounting position - Use this to enter the mounting position of the carrier.
